ARdiator Bracket

r1076 · Post by **r1076** » Mon Jun 17, 2013 12:50 pm

Hi Guys,

I need a template for the stepped Radiator Bracket, as my car doesn´t have its original anymore. Tried to make one, but without correct messurements, the fan hits the Radiator Cowling.

Thanks for Help!

r1076 · Post by **r1076** » Mon Jun 24, 2013 9:31 am

No one?

arrian · Post by **arrian** » Mon Jun 24, 2013 10:15 am

Unfortunately my car is about 200k's away and I don't think I'll be there for the next few weeks. I'll measure up mine when I'm next there if someone hasn't given some measurements sooner!

an old original · Post by **an old original** » Mon Jun 24, 2013 6:04 pm

I'll try and get under the bonnet in the next day or 2...

r1076 · Post by **r1076** » Tue Jun 25, 2013 11:17 am

Thanks Guys!

kayball · Post by **kayball** » Tue Jun 25, 2013 6:49 pm

Hi All.

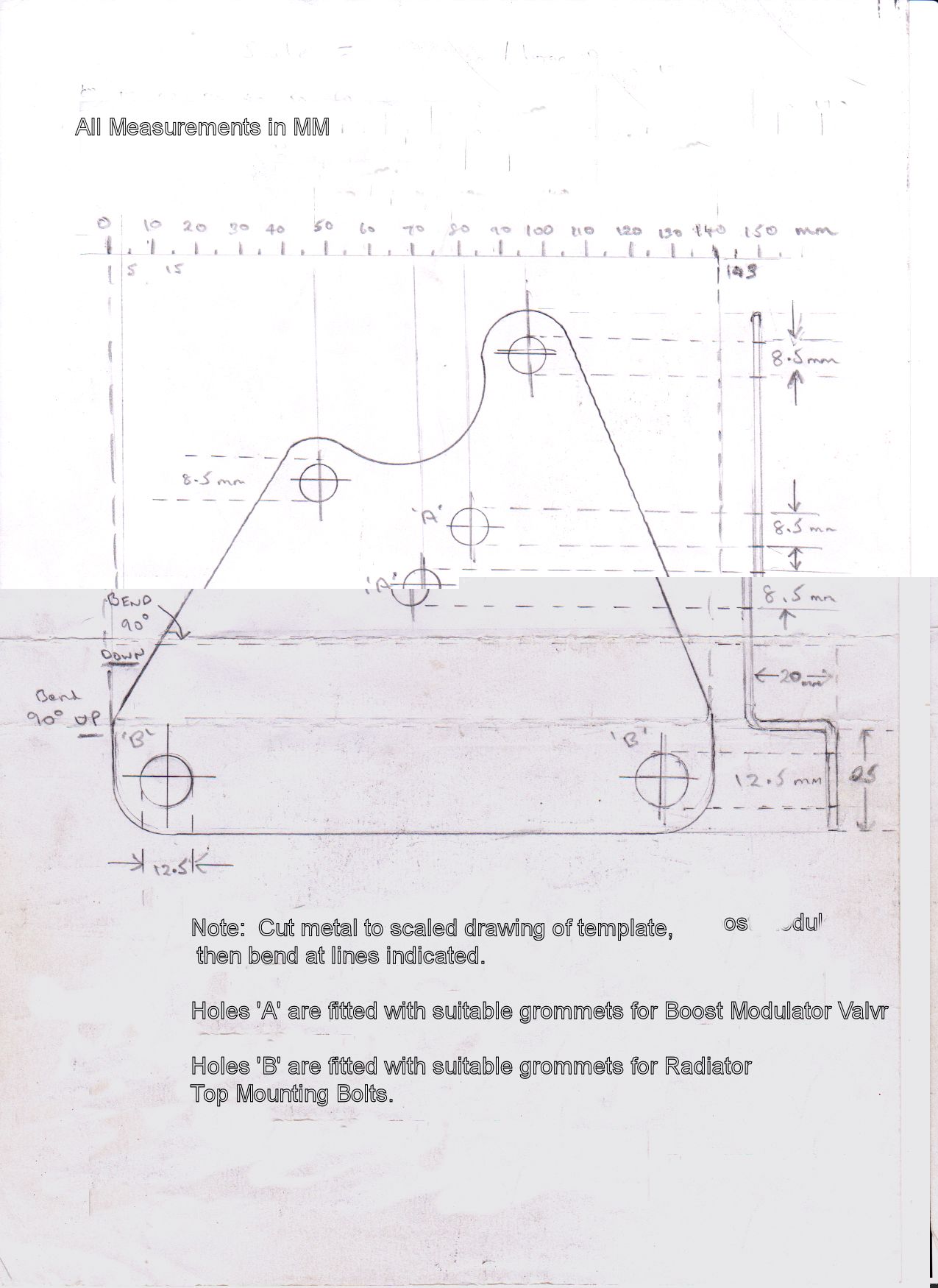

Just found this very rough drawing of Radiator Top Bracket.
I have been intending to tart it up for years but never got around to it.
It was traced from original so if scaled on printer should be all ok to cut. bend positions are critical so note that first bend is 25mm from base of drawing and next bend, the other way is 20mm up from that to give a 20mm deep offset. If you can't read it or have any questions then please e-mail me direct.
Pete Kay (pkay@ntlworld.com)

r1076 · Post by **r1076** » Wed Jun 26, 2013 12:33 pm

Thank you very much.

G96LUE · Post by **G96LUE** » Sat Jul 13, 2013 11:46 am

I made mine starting with a 1275GT top bracket and added the bends & extra holes. I'm sure that is what ERA would have done too
